40ft Open Top Container Dimensions

Review the external dimensions, internal space and roof opening of a 40ft open top container before choosing a unit for your cargo. The removable roof system supports top-loading for over-height, heavy or awkwardly shaped goods that may not pass through standard end doors.

Shipping Containers of Southampton supplies 40ft open top containers for sale and hire. You can buy a 40ft open top container for longer-term use or hire a 40ft open top container for a temporary project. Delivery from Southampton uses HIAB, so the proposed position and lifting route should be checked before the container is ordered.

40ft open top container dimensions and reference data

A 40ft open top container is also known as a forty-foot equivalent unit, or FEU. The figures below provide reference dimensions for planning cargo, storage space and delivery. Individual units can vary, so confirm the specifications of the selected container before arranging transport or loading.

Description Metric measurements Imperial measurements
External length 12.192 m 40 ft 0 in
External width 2.438 m 8 ft 0 in
External height 2.591 m 8 ft 6 in
Internal length 12.032 m 39 ft 5 3/4 in
Internal width 2.352 m 7 ft 8 5/8 in
Internal height 2.348 m 7 ft 8 1/2 in
Roof opening length 11.810 m 38 ft 8 7/8 in
Roof opening width 2.232 m 7 ft 3 7/8 in
Tare weight 3,820 kg 8,422 lb
Maximum payload 26,600 kg 58,643 lb
Maximum gross weight 30,480 kg 67,197 lb

Tare weight is the weight of the empty container. Payload refers to the cargo weight stated for the unit, while gross weight includes the container and its cargo. These figures should be checked against the markings and documentation for the specific container, particularly when the load will be lifted or transported.

The roof opening is smaller than the internal length and width. Measure the cargo, including any lifting points or projections, against the roof opening rather than relying only on the internal footprint. The wider range of container sizes and types in our container dimensions library can help when comparing alternatives.

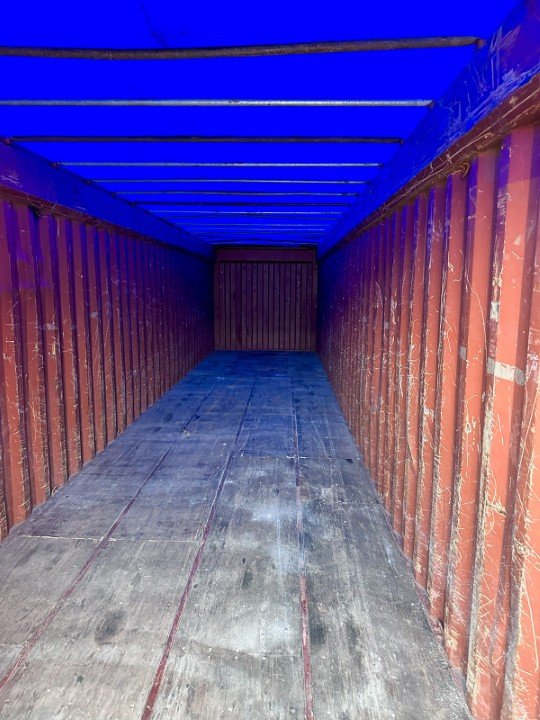

Interior of an open-top container, showing its timber floor, side walls, roof bows and tarpaulin.

How the open top design affects loading

Instead of a fixed steel roof, an open top container uses a removable tarpaulin supported by removable roof bows. Removing these components creates access from above for an overhead crane. This can help with heavy plant machinery, industrial boilers, large mechanical parts, structural steel and other goods that are difficult to load through the end doors.

The roof bows and tarpaulin should be refitted and secured after loading when the cargo needs protection during transport or storage. Some units may also have a removable rear header bar above the doors. Check the design of the selected container if this feature is relevant to your loading method.

An open top is not automatically the right choice for every oversized load. If the cargo also exceeds the available width, compare it with a flat-rack container. Flat racks do not have conventional side walls and a roof, providing a different loading arrangement. The 40ft flat-rack dimensions should be checked against the cargo before making a decision.

Condition, weather protection and CSC terminology

Open top containers can be offered in different conditions. Used describes a container that has previously been in service, but this label alone does not confirm that it is wind and watertight. If a unit is described as wind and watertight, confirm its current condition and inspect the tarpaulin, roof-bow fittings, doors and seals where appropriate.

One-trip generally describes a container that has completed a limited initial shipping journey. It should not be taken to mean unused, exactly one voyage to the UK or a guarantee of a particular appearance. Ask for the condition description that applies to the specific unit.

Some containers used for international freight may carry a CSC plate. CSC refers to the safety certification system used for shipping containers. Check the plate, documentation and intended use rather than assuming that a container is suitable for a particular carrier or movement. IICL is a separate container inspection and grading reference, so an IICL description should also be confirmed for the individual unit.

Choosing between buying and hiring

Buying may suit a longer-term storage or freight requirement where retaining the container is part of the plan. Hiring may be more appropriate when the requirement is linked to a defined project or temporary need. Compare the container sales range and container hire range after confirming the cargo dimensions, loading method and expected period of use.

A standard 40ft container may be worth considering if top-loading is not required. An open top is a specialist product, so the removable roof system should have a clear purpose in the handling plan. For a container recommendation based on your cargo and site, you can send the requirements for a container quotation.

HIAB delivery from Southampton

Shipping Containers of Southampton uses HIAB delivery. HIAB is the common UK term for a lorry-mounted crane used to unload and position a container. The container may fit the intended storage area but still be unsuitable for delivery if the HIAB vehicle cannot reach a suitable lifting position.

Check the access route, available turning space and the position where the vehicle will stand during unloading. Also consider overhead obstructions, including trees, buildings, walls, fences and cables. The lifting position should allow the container to be placed without relying on the crane to lift automatically over obstacles.

The proposed location should provide firm, reasonably level support suited to the site and expected load. Soft or uneven ground can contribute to settlement and affect door operation. Plan the door orientation, drainage around the container and future access for collection or repositioning. Guidance on preparing a suitable container foundation covers the practical points to consider.

Planning the container placement

Planning requirements can depend on how the container will be used, how long it will remain in place, the status of the site, its visibility, nearby neighbours and local planning policy. Listed buildings, conservation areas, a change of use or a prominent position may create additional considerations. Planning permission is not automatically required or excluded for every container placement.

Check current requirements with the relevant local council before committing to the proposed placement or use. The guide to planning permission for shipping containers provides further points to review alongside your site-specific enquiries.

For ongoing use, inspect the tarpaulin, roof bows, doors, locking points and seals as part of routine care. The container maintenance and repair guide explains why regular checks can help identify issues that may affect loading, access or weather protection.
